State-of-the-art printer bygget med avanceret teknologi for at tilbyde høj præcision, hastighed, og stabilitet til din virksomheds succes.
The safety lock ensures that the printer operates only when all safety parameters are met, preventing accidental misuse and ensuring a secure working environment for operators.
The ink alarm system alerts you when ink levels are low or if there is a potential blockage, helping you avoid print errors or interruptions and maintain continuous production.
The paper rewinder automatically collects and rolls up the printed transfer film, providing convenience and saving time on manual tasks while maintaining neat and organized rolls for easy use.
The HIWIN guide rail ensures smooth and precise movement of the printhead, reducing friction and ensuring consistent high-quality prints over long production cycles. Known for its durability, HIWIN guide rails enhance the printer’s performance and longevity.
| Model | I3200-U1 |
|---|---|
| Stykker | 3 |
| Blæktype | UV/Økoopløsningsmiddel |
| Maks. antal farveblæk | 4 farver |
| Antal dyse | 3200 |
| Dysestigning/dyserække | 1/300 tommer |
| Dyserækker | 8 rækker |
| Dyse opløsning | 300npi/række 600npi/2 rækker |
| Effektiv udskriftsbredde | 33.8 mm (1.33 tommer) |
| Dimensioner(LxBxH) | 69.1 x 59.54 x 35.6 mm |
| Vægt | 82g |
| Model | C604 UV |
|---|---|
| Printhoved og antal | Epson 13200-U1 4 PCS |
| Udskrivningshastighed |
6 passere:6m²/h 8 passere:4m²/h |
| Udskriftsbredde | 60cm/24 tommer |
| Medier | Crystal label AB film, udgivelsesfilm, reklame blødt spole materiale |
| System | Hosonsoft |
| Varmesystem | Cirkulerende vandkølesystem Gummirulle til at køre |
| Transmissionstilstand | Cot Drive |
| Blæktyper | UV-blæk specielt til krystalmærke ( CMYK+W+V) |
| Interface | Temperatur:20-28 °C Luftfugtighed.40-60 % |
| Driftsmiljøer | 50HZ/60HZ, AC220V/110V(+5%) |
| Maskinkraft | 1800W |
| Maskinens dimension | L1755*B770*H1600mm |
| Pakkedimension | L2135W875H780mm |
| Nettovægt | 200KG |
| Bruttovægt | 250KG |
Use Photoshop, illustrator, or other software to design your pattern.
Print your design on print film (A Film).
Laminate the transfer film (Film B) on the top of printed film (Film A).
Cut UV DTF crystal labels

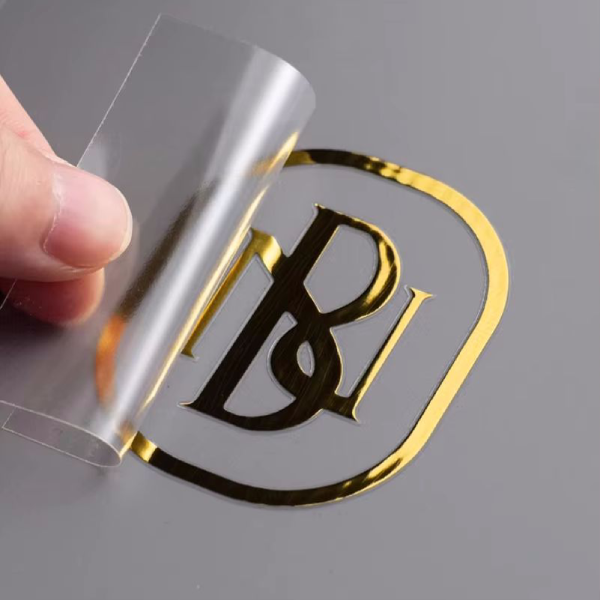

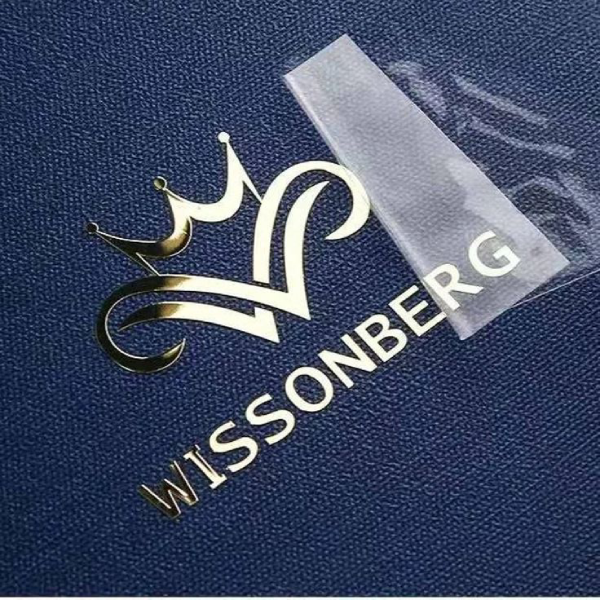

Stick UV DTF sticker on substrates, and slowly peel the backing film off.
