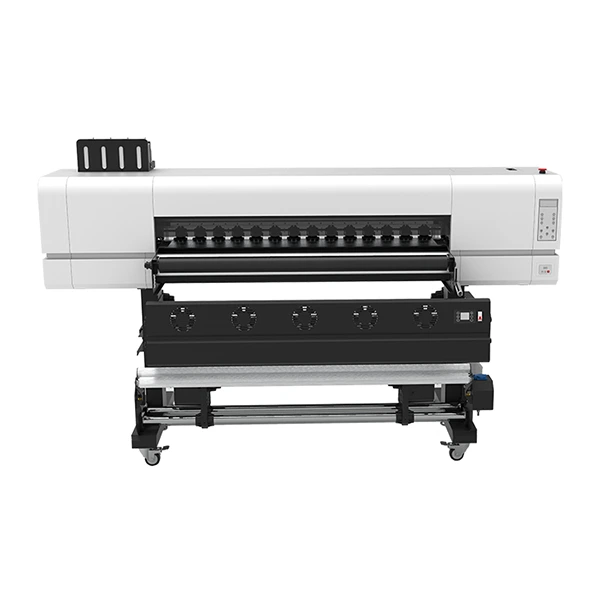

48 Inch 4 Heads DTF Printer（XF-1304+1300）
With a robust capacity, the pro DTF solution applies to all ranges of apparel, which suits the industrial businesses. It offers high precision, efficiency, and high-resolution colors, and is easy to operate & maintain. Two kinds of powder shaking machines with different powder and efficiency for you to choose from.
Parameter
Productivity:
25㎡/h (4 Pass)
Printing Width:
0-1200mm
Printhead:
4* Epson I3200-A1 (Optional 4720)
Dimension:
2485 x 955 x 1573mm
Main Features
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.
Exquistie Printing Platform
Equipped with an exquisite press wheel and drying platform that makes the PET film remain flat and smooth. The substrate will not have any form of wrinkle.

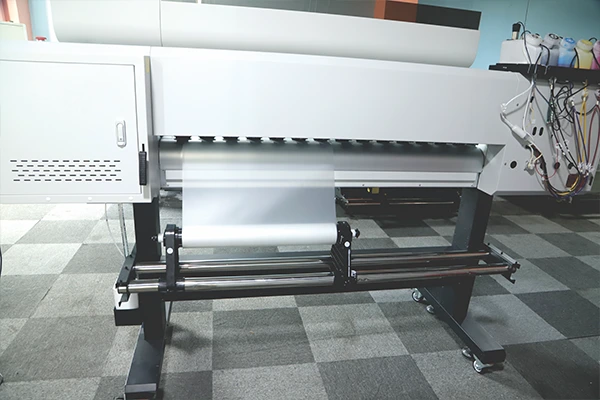

Adjustable Film Dispenser
The receiver can be compatible with various sizes of film width, including 30cm, 60cm, and 120cm. It can be automatically adjusted, allowing you to set the printing film to suit your application.

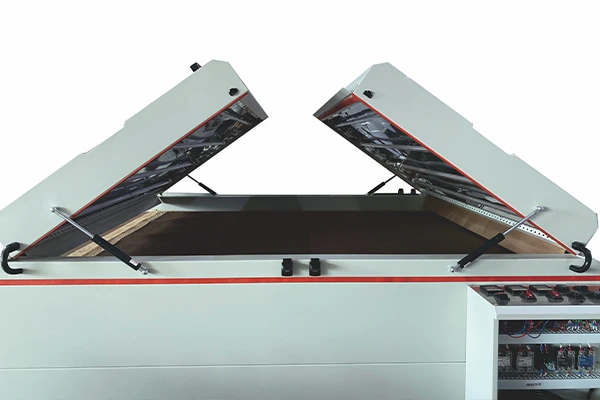

Automatic Powder Control
Manufactured with clear buttons that help with spreading direction and powder quantity control. This is used to regulate shaking and dusting powder, as well as the drying function automatically.

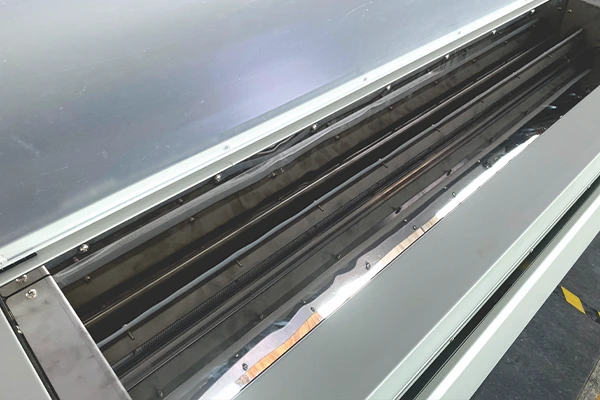

Dual Heating & Cooling tech
Features a two-stage drying system, preheating to accelerate the drying speeds, as well as a row for air cooling which helps to upgrade the drying and curing to the next level.
With Precisioncore technology, quick speed, and high resolution, the I3200-A1 printhead is the latest and most efficient model for the textile printer, coming with outstanding nozzles with attributes like automatic cleaning, automatic flash spray, and moisturizing function that keep the printhead free without interruption.
Epson Printhead
| Model | I3200-A1(Optional 4720) |
|---|---|
| Pieces | 4 |
| Ink Type | Apueous |
| Max. number of colour inks | 8 colours |
| Number of nozzle | 3200 |
| Nozzle pitch /nozzle row | 1/300 inches |
| Nozzle Rows | 8 rows |
| Nozzle Resolution | 300npi/row 600npi/2rows 1200npi/4rows |
| Effective Print Width | 33.8 mm (1.33 inches) |
| Dimensions(LxWxH) | 69.1 x 59.5 x 36.7 mm |
| Weight | 78g |
Technical Parameter for Printer
| Model | M1304 |
|---|---|
| Printing Speed | 4 Pass: 25 sqm/h 6 Pass: 15 sqm/h |
| Printing Width | 1200mm |
| RIP Software | Debut: Main Top Optional: RIIN, Photoprint |
| Temperature / Humidity | 20-30 Celsius / 45-65%Rh |
| Power | 200W-450W |
| Net Weight | 270KG |
| Gross Weight | 300KG |

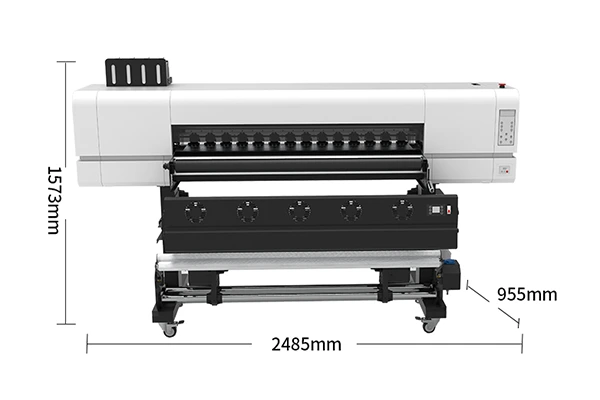

| Dimension | 2485 x 955 x 1573mm |
| Package Dimension | 2600 x 1060 x 760mm |

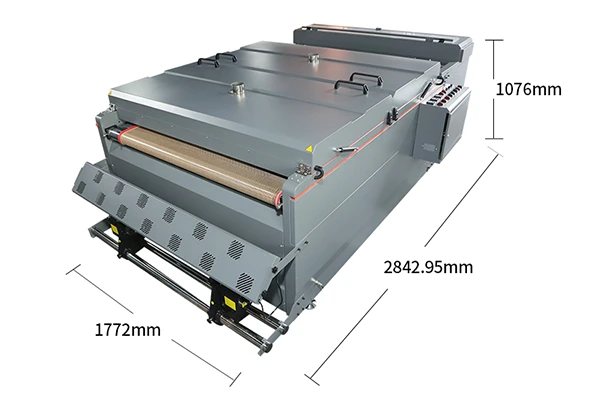

Technical Parameter for Powder Shaking Machine
| Model | M1304 |
|---|---|
| Retractable Film Width | 0-1200mm |
| Rated Voltage | 220V |
| Rated Current | 47A |
| Rated Power | 10.2KW |
| Power Consumption | 8KW-10.2KW |
| Net Weight | 580KG |
| Gross Weight | 620KG |
| Dimension | 2843 x 1772 x 1076mm |
| Package Dimension | 2850 x 1880 x 1236mm |
How does it work?
Start Printing Effortlessly
Comprehensive service starting from pre-sale to after-sale to help your business on track.
Free Demo & Sample
To show the quality and capability of our printer in satisfying your needs, we will send you a free video demonstration showing its operation. And you can get free samples for consumables.
Free Demo & Sample
To show the quality and capability of our printer in satisfying your needs, we will send you a free video demonstration showing its operation. And you can get free samples for consumables.
Fast Delivery
To meet everyone’s order quickly, we’ve established an overseas warehouse in California, USA. This doesn’t just save time and effort, but also reduces transportation fees. In-stock products can be delivered within 7 days.
Fast Delivery
To meet everyone’s order quickly, we’ve established an overseas warehouse in California, USA. This doesn’t just save time and effort, but also reduces transportation fees. In-stock products can be delivered within 7 days.
Onboarding Easily
Adequate provision is made for installation and repairs. We offer both online and door-to-door services around the world and also provide manuals and video instructions as extra guides.
Onboarding Easily
Adequate provision is made for installation and repairs. We offer both online and door-to-door services around the world and also provide manuals and video instructions as extra guides.
Life-time Warranty
You can enjoy a lifetime warranty on all products using our branded inks, which guarantees free spare parts & repairs, software updates, and technical assistance 24/7.
Life-time Warranty
You can enjoy a lifetime warranty on all products using our branded inks, which guarantees free spare parts & repairs, software updates, and technical assistance 24/7.
