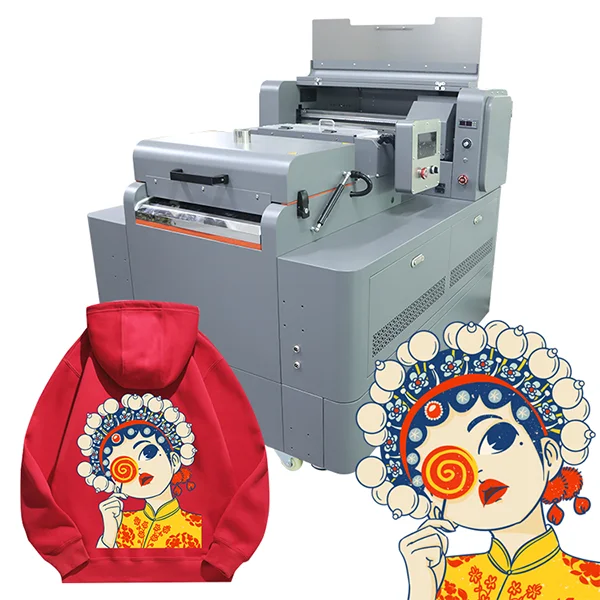

12 Inch All-in-One DTF Printer(XF-480)
All-in-one direct-to-film solution with small-size suits for startup businesses. A budget-friendly choice can be used for various demanding clothing applications, as well as brand customization like printing logos, changing colors, and upgrading smart control.
Parameter
Productivity:
4㎡/h (6 Pass)
Printing Width:
0-370mm
Printhead:
2* Epson XP600

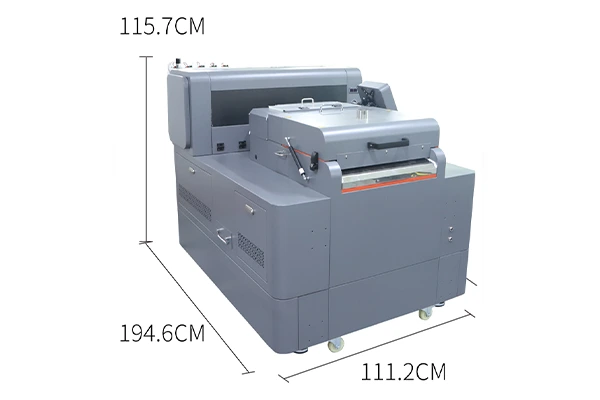

Dimension:
1946 x 1112 x 1157mm
Main Features
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

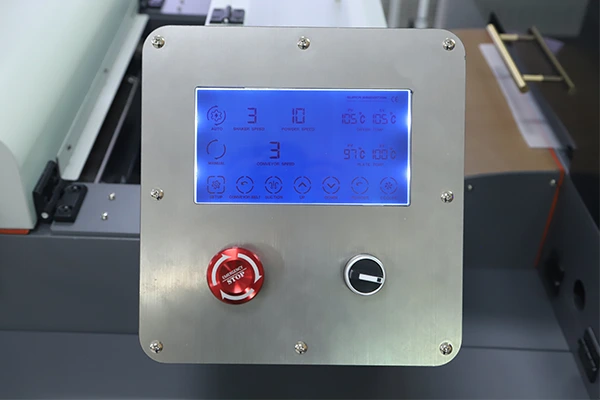

PLC Touch Screen
Possess a rotatable smart touch control panel that enables easy control of the whole printer. Also, it is equipped with many languages, allowing you to change the settings to your preferred language.
Cost-saving Powder Shaker
Comes with a built-in powder shaking machine that’s different from the normal separated ones in the market. It saves a lot of space and cost while still maintaining an exclusive performance to spreading evenly.

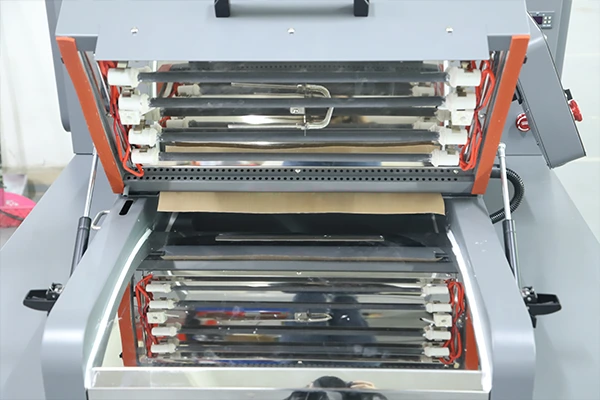

Preheating System
With a heater and upper drying lamps system, it can heat up the printer before printing and then dry the film afterward. This process prevents wet film and ink smudge.

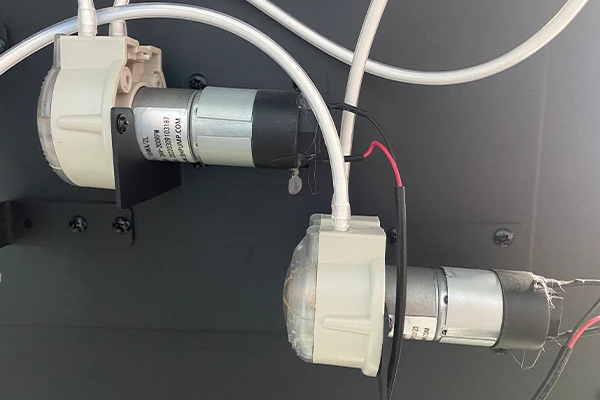

White Ink Circulation
Continuous ink supply during the printing process. White ink is stirred and properly circulated to prevent precipitation, and clogging, and ensure smooth printing.
Having a high resolution of as much as 5760 dpi, the XP600 printhead is more cost-friendly compared to other models. The printhead with moderate stability and color saturation is an overall good choice for startups. It has 6 channels of 180 nozzles, making a total of 1080 nozzles.

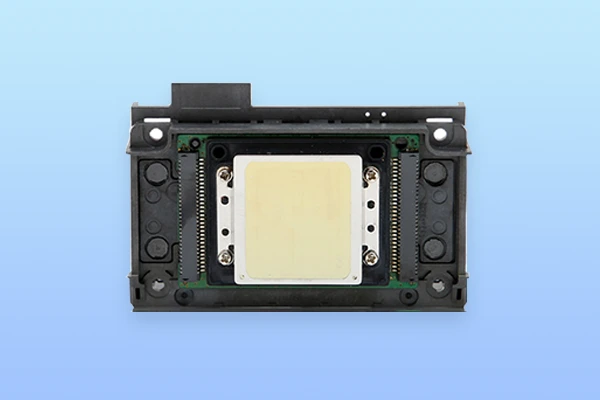

Epson Printhead
| Model | XP600 |
|---|---|
| Pieces | 2 |
| Ink Type | Eco-solvent ink, UV ink |
| Max. number of colour inks | 6 colors (180dpi / color) |
| Number of nozzle | 1080 |
| Nozzle pitch /nozzle row | 1/300 inches |
| Nozzle Rows | 6 rows |
| Nozzle Resolution | 180npi / row, 360dpi / 2 rows |
| Effective Print Width | 33.8 mm (1.33 inches) |
| Dimensions(LxWxH) | 84.9 x 57.2 x 42.6 mm |
| Weight | 60 g |
Technical Parameter for Printer
| Model | XF-480 |
|---|---|
| Printing Speed | 6Pass: 4 sqm/h 8 Pass: 3 sqm/h |
| Printing Width | 0-370mm |
| RIP Software | Debut: Main Top Optional: RIIN, Photoprint |
| Temperature / Humidity | 15-30 Celsius/ 45-65%Rh |
| Power | 50HZ/60HZ, 220V 15A |
| Net Weight | 250KG |
| Gross Weight | 300KG |
| Dimension | 1946 x 1112 x 1157mm |
| Package Dimension | 2150 x 1130 x1080mm |
How does it work?
Start Printing Effortlessly
Comprehensive service starting from pre-sale to after-sale to help your business on track.
Free Demo & Sample
To show the quality and capability of our printer in satisfying your needs, we will send you a free video demonstration showing its operation. And you can get free samples for consumables.
Free Demo & Sample
To show the quality and capability of our printer in satisfying your needs, we will send you a free video demonstration showing its operation. And you can get free samples for consumables.
Fast Delivery
To meet everyone’s order quickly, we’ve established an overseas warehouse in California, USA. This doesn’t just save time and effort, but also reduces transportation fees. In-stock products can be delivered within 7 days.
Fast Delivery
To meet everyone’s order quickly, we’ve established an overseas warehouse in California, USA. This doesn’t just save time and effort, but also reduces transportation fees. In-stock products can be delivered within 7 days.
Onboarding Easily
Adequate provision is made for installation and repairs. We offer both online and door-to-door services around the world and also provide manuals and video instructions as extra guides.
Onboarding Easily
Adequate provision is made for installation and repairs. We offer both online and door-to-door services around the world and also provide manuals and video instructions as extra guides.
Life-time Warranty
You can enjoy a lifetime warranty on all products using our branded inks, which guarantees free spare parts & repairs, software updates, and technical assistance 24/7.
Life-time Warranty
You can enjoy a lifetime warranty on all products using our branded inks, which guarantees free spare parts & repairs, software updates, and technical assistance 24/7.
