12 Inch Print Shake Powder All-in-One DTF Printer(XF-480 Plus)
An upgraded version of XF-480 supports more colors and a higher efficiency printhead. The printer suits for commercial businesses with numerous applications on materials like nylon, chemical fiber, cotton, leather, etc.
Parameter
Productivity:
9㎡/h (6 Pass)
Printing Width:
0-370mm
Printhead:
2* Epson I3200-A1 (Optional 4720)

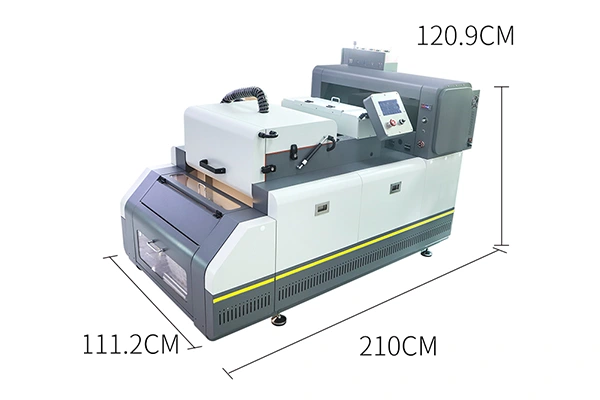

Dimension:
2100 x 1112 x 1209mm
Main Features
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

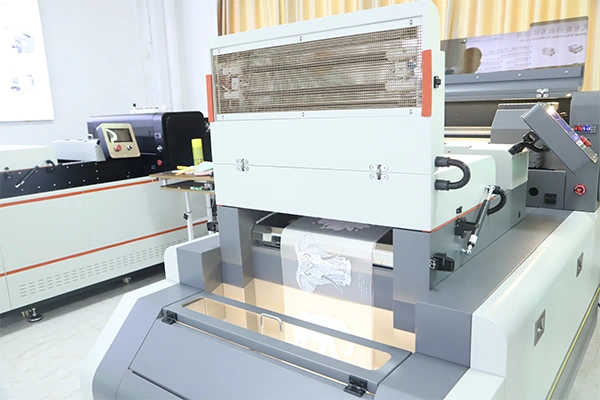

Two Section Drying Tunnels
Built with a preheating and powder shaking system that ensures great efficiency in the drying and curing process of PET film without ink smudge.

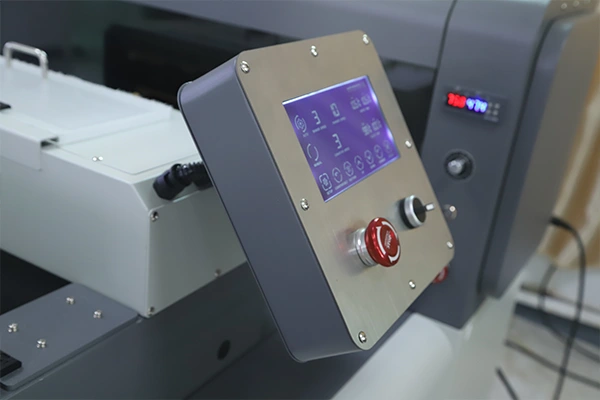

PLC Touch Screen
Comes with a rotatable smart touch control panel, enabling easy navigation and operation of the whole printer. Also, it supports different languages, allowing you to choose your preferred choice.

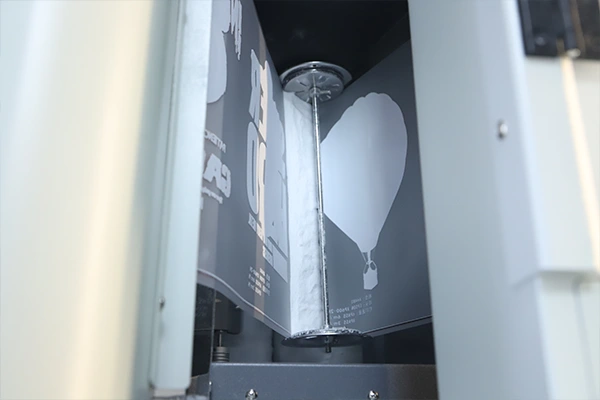

Cost-saving Powder Shaker
Comes with a built-in powder shaking machine that’s different from the normal separated ones in the market. It saves a lot of space and cost while still maintaining an exclusive performance to spreading evenly.
White Ink Circulation
With a consistent ink supply and circulation system, white ink is stirred effectively to avoid precipitation and clogging, ensuring smooth printing and low maintenance.
With a precisioncore technology, quick speed, and high resolution, the I3200-A1 printhead is the lastest and efficient model for textile printer, coming with outstanding nozzles with attributes like automatic cleaning, automatic flash spray, and moisturizing function that keep the printhead free without interruption.
Epson Printhead
| Model | I3200-A1(Optional 4720) |
|---|---|
| Pieces | 2 |
| Ink Type | Apueous |
| Max. number of colour inks | 8 colours |
| Number of nozzle | 3200 |
| Nozzle pitch /nozzle row | 1/300 inches |
| Nozzle Rows | 8 rows |
| Nozzle Resolution | 300npi/row 600npi/2rows 1200npi/4rows |
| Effective Print Width | 33.8 mm (1.33 inches) |
| Dimensions(LxWxH) | 69.1 x 59.5 x 36.7 mm |
| Weight | 78g |
Technical Parameter for Printer
| Model | XF-480 Plus |
|---|---|
| Printing Speed | 6 Pass: 9 sqm/h 8 Pass: 7 sqm/h |
| Printing Width | 0-370mm |
| RIP Software | Debut: Main Top Optional: RIIN, Photoprint |
| Temperature / Humidity | 15-30 Celsius/ 45-65%Rh |
| Power | 50HZ/60HZ, 220V 15A |
| Net Weight | 280KG |
| Gross Weight | 350KG |
| Dimension | 2100 x 1112 x 1209mm |
| Package Dimension | 2150 x 1130 x1080mm |
How does it work?
Start Printing Effortlessly
Comprehensive service starting from pre-sale to after-sale to help your business on track.
Free Demo & Sample
To show the quality and capability of our printer in satisfying your needs, we will send you a free video demonstration showing its operation. And you can get free samples for consumables.
Free Demo & Sample
To show the quality and capability of our printer in satisfying your needs, we will send you a free video demonstration showing its operation. And you can get free samples for consumables.
Fast Delivery
To meet everyone’s order quickly, we’ve established an overseas warehouse in California, USA. This doesn’t just save time and effort, but also reduces transportation fees. In-stock products can be delivered within 7 days.
Fast Delivery
To meet everyone’s order quickly, we’ve established an overseas warehouse in California, USA. This doesn’t just save time and effort, but also reduces transportation fees. In-stock products can be delivered within 7 days.
Onboarding Easily
Adequate provision is made for installation and repairs. We offer both online and door-to-door services around the world and also provide manuals and video instructions as extra guides.
Onboarding Easily
Adequate provision is made for installation and repairs. We offer both online and door-to-door services around the world and also provide manuals and video instructions as extra guides.
Life-time Warranty
You can enjoy a lifetime warranty on all products using our branded inks, which guarantees free spare parts & repairs, software updates, and technical assistance 24/7.
Life-time Warranty
You can enjoy a lifetime warranty on all products using our branded inks, which guarantees free spare parts & repairs, software updates, and technical assistance 24/7.
