L1208+H1300 48 Inch 8PCS I3200-A1 DTF Printer

48 inch 8pcs printheads DTF printer

L1208+H1300 48 Inch 8PCS I3200-A1 DTF Printer

Equipped with a wide format and 8 Epson print heads, this printer is suitable for growing and large business for large orders at one time. Efficient and convenient to use.

Parameter

Productivity: 4Pass:74m²/h 6Pass: 48m²/h
Printing Width: 48"
Print Head: 8PCS Epson 13200-A1
Dimension: L2860*W915*H1890mm

Main Features

State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

Printer Control panel

Powder Shaker Control Panel

Emergency Switch

Curing Oven

With Precisioncore technology, quick speed, and high resolution, the I3200-A1 printhead is the latest and most efficient model for the textile printer, coming with outstanding nozzles with attributes like automatic cleaning, automatic flash spray, and moisturizing function that keep the printhead free without interruption.

Epson Printhead

Model 13200-A1
Pieces 8
Ink Type Apueous
Max. number of colour inks 8 colours
Number of nozzle 3200
Nozzle pitch /nozzle row 1/300 inches
Nozzle Rows 8 rows
Nozzle Resolution 300npi/row 600npi/2rows 1200npi/4rows
Effective Print Width 33.8 mm (1.33 inches)
Dimensions(LxWxH) 69.1 x 59.5 x 36.7 mm
Weight 78g

Technical Parameter for Printer

Model L1208
Printhead and Quantity 13200-A1 8PCS
Printing Speed 4Pass:74m/h 6Pass: 48m/h
Printing Width 48
Media Type DTF Film
RIP Software Standard with Printfactory ,Maintop, RIlN, PhotoPrint, CADlink for Optional
Temperature/Humidity Temperature: 20-30 Celsius��Humidity: 45-65%
Power / Voltage 950W /110V/220V
Machine Size L2860*W915*H1890mm
Packing Size L2940*W920*H970mm
Net Weight 458KG
Gross Weight 488KG

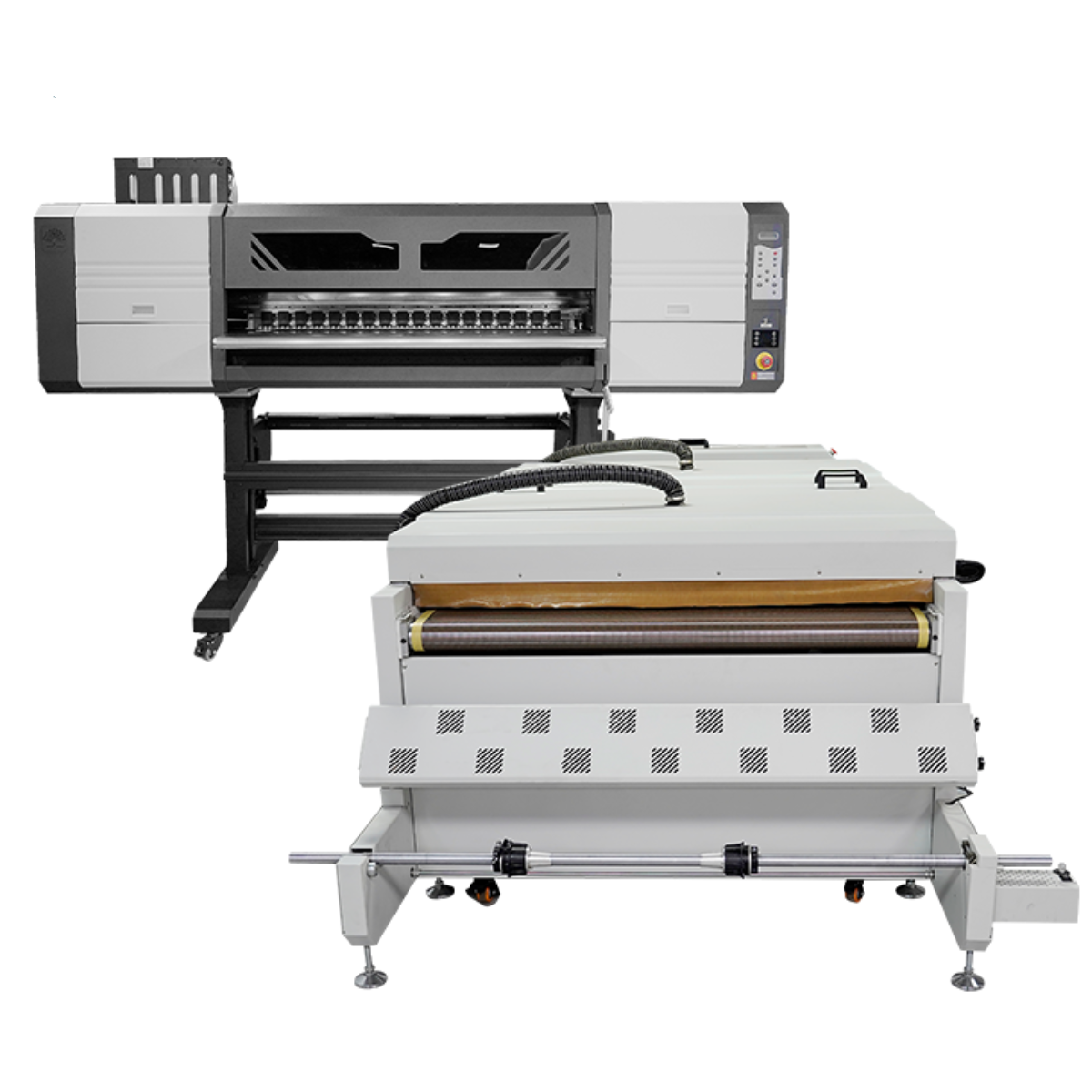

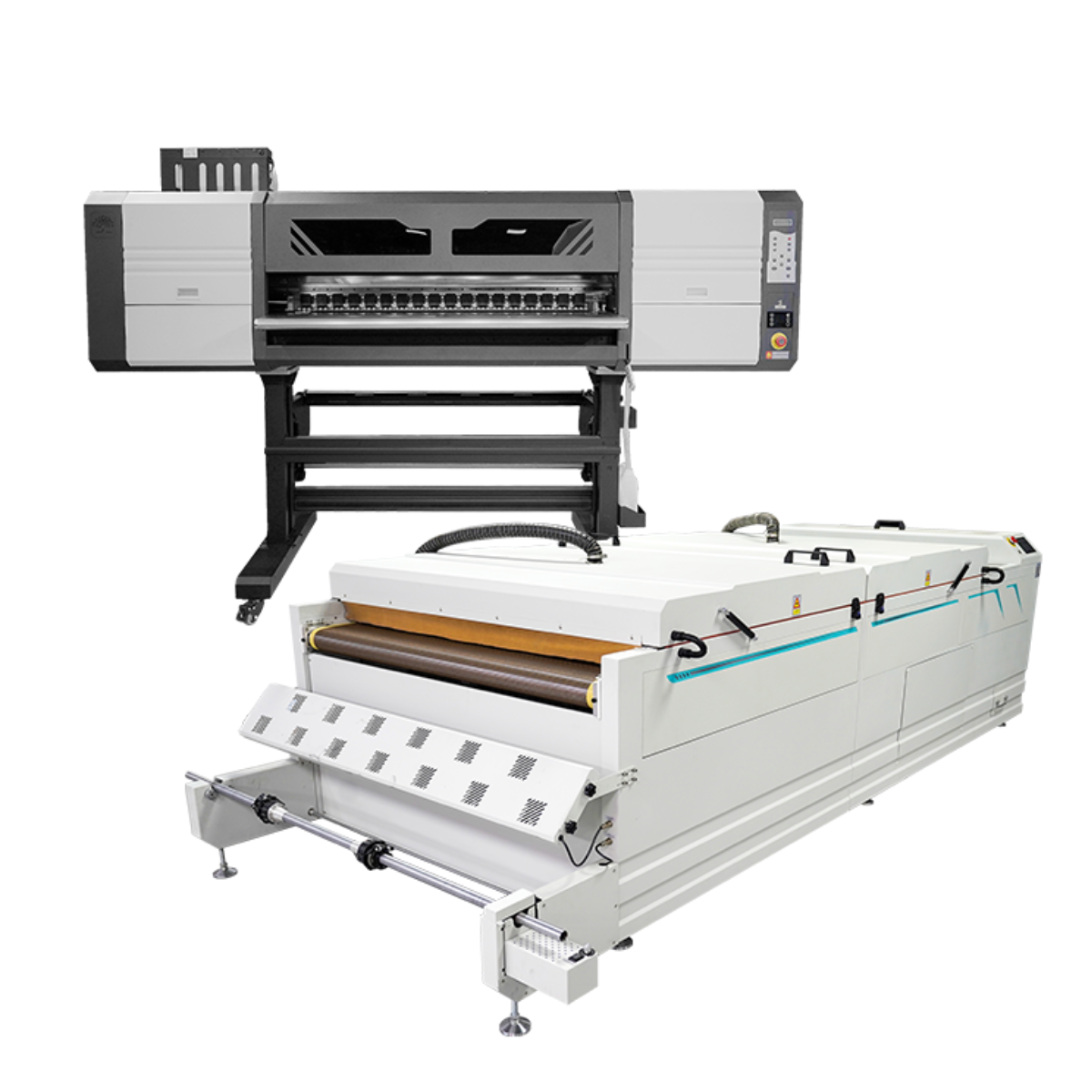

L1208 dtf PRINTER
H1300 powder shaker

Technical Parameter for Powder Shaking Machine

Model H1300
Medium Width 48"
Media Type Nylon, chemical fiber, cotton, leather, diving suit,PVC,EVA and so on
Powder Control Shake powder control, dusting control, direction and quantity control
Heating and Drying Function The front quide plate heating, before and after two ultra-longdrying thousand curing, double row of cold air cooling function
Material Transfer Mode Net belt conveyor, guide tape type
Reel Function Automatic induction retraction
Rated Voltage 110V/220V
Rated Current 47A
Rated Power 10.2KW
Energy Consumption 8KW-10.2KW
Machine Size L2843*W1772*H1076mm
Packing Size L2850*W1880*H1236mm
Net Weight 580KG
Gross Weight 620KG

How does it work?

1

Typeset on Computer

Organize your design pattern on a computer with RIP software for better ink color performance and print characteristics.
1

Typeset on Computer

Organize your design pattern on a computer with RIP software for better ink color performance and print characteristics.
2

Print in Machine

Put the PET film into the printer trays & print the entire image on it. Then, using the color settings in the printer, print the required image on the white layer.
2

Print in Machine

Put the PET film into the printer trays & print the entire image on it. Then, using the color settings in the printer, print the required image on the white layer.
3

Cure ink with Powder

With a powder-shaking machine, the adhesive powder can spread evenly on the PET film and dry the graphics
3

Cure ink with Powder

With a powder-shaking machine, the adhesive powder can spread evenly on the PET film and dry the graphics
4

Heat Press to Transfer

With the film smoothly laid on the garment, push down the heat press machine to transfer the design pattern.
4

Heat Press to Transfer

With the film smoothly laid on the garment, push down the heat press machine to transfer the design pattern.

Start Printing Effortlessly

Comprehensive service starting from pre-sale to after-sale to help your business on track.

Free Demo & Sample

To show the quality and capability of our printer to satisfy your needs, we will send you a free video demonstration or free samples worth $500, including vulnerable parts, a set of ink / a roll of print film / a kilogram of powder.
flipbox-image

Free Demo & Sample

To show the quality and capability of our printer to satisfy your needs, we will send you a free video demonstration or free samples worth $500, including vulnerable parts, a set of ink / a roll of print film / a kilogram of powder.

Fast Delivery

To meet everyone’s order quickly, we’ve established an overseas warehouse in California, USA. This doesn’t just save time and effort, but also reduces transportation fees. In-stock products can be delivered within 7 days.
flipbox-image

Fast Delivery

To meet everyone’s order quickly, we’ve established an overseas warehouse in California, USA. This doesn’t just save time and effort, but also reduces transportation fees. In-stock products can be delivered within 7 days.

Technical Support

Adequate provision is made for installation and repairs. We offer both online and door-to-door services around the world and also provide manuals and video instructions as extra guides.
flipbox-image

Technical Support

Adequate provision is made for installation and repairs. We offer both online and door-to-door services around the world and also provide manuals and video instructions as extra guides.

Life-time Warranty

You can enjoy a lifetime warranty on all products using our branded inks, which guarantees free spare parts & repairs, software updates, and technical assistance 24/7.
flipbox-image

Life-time Warranty

You can enjoy a lifetime warranty on all products using our branded inks, which guarantees free spare parts & repairs, software updates, and technical assistance 24/7.
