T603 PLUS UV DTF Printer

T603 UV printer detail front

T603 PLUS UV DTF Printer

The finished UV direct to films can apply design on the surface of stainless steel, ceram, woodware, gift box, metal, glass, etc. With 3 Epson print heads, it can work efficiently and provide vibrant prints without hassle.

Parameter

Productivity: 4pass:10m/h 6pass:8m/h 8pass:4m/h
Printing Width: 24"
Printhead: 3PCS Epson 13200-U1
Dimension: L1755*W770*H1600mm

Main Features

State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

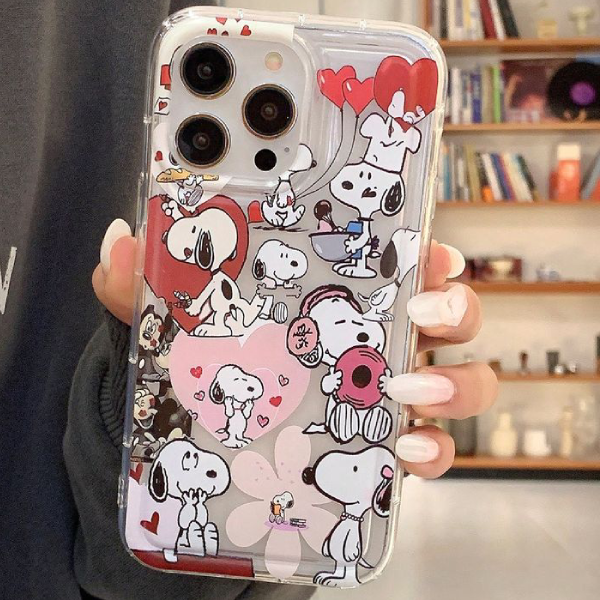

Phone case

Helmet

Box

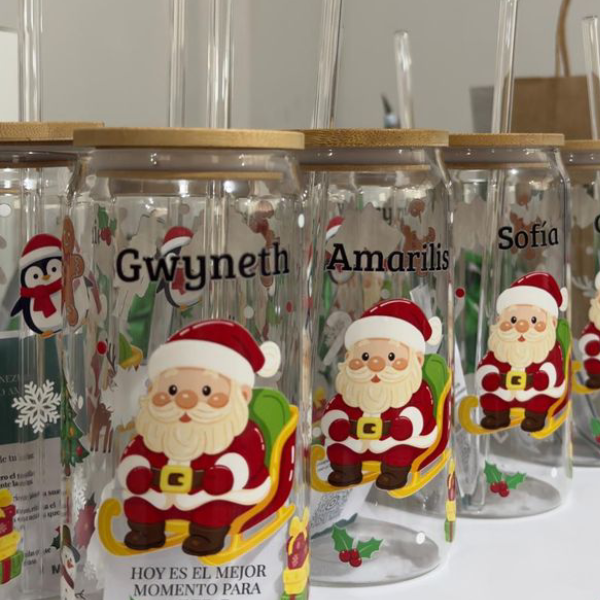

Cup

I3200-U1 with advanced PrecisionCore Technology and Variable Sized Droplet Technology (VSDT) delivers smooth gradation by freely controlling the droplet volume, which is durable to use. Ink ejection of up to 4 colors realized with high resolution (600 dpi/color).

Epson Printhead

Model I3200-U1
Pieces 3
Ink Type UV/ Eco Solvent
Max. number of colour inks 4 colours
Number of nozzle 3200
Nozzle pitch /nozzle row 1/300 inches
Nozzle Rows 8 rows
Nozzle Resolution 300npi/row 600npi/2rows
Effective Print Width 33.8 mm (1.33 inches)
Dimensions(LxWxH) 69.1 x 59.54 x 35.6 mm
Weight 82g

Technical Parameter for Printer

Model T603
Printhead and Quantity Epson 13200-U1 3 PCS
Printing Speed 4pass:10m'/h 6 pass:8m'/h 8 pas5:4mi/h
Printing Width 24*
Media Crystal label AB film, release film, advertising soft coil material
System Hosonsoft
Heating System Circulating water cooling systemRubber roll to drive
Transmission Mode UV ink special for crystal label ( CMYK+W+V)
Ink Tyeps USB 3.0
Interface Temperature:20-28C Humidity.40-60%
Operation Environments 50HZ/60HZ220V/110V(+5%)
Power Painting:1800W
Machine Dimension L1755*W770*H1600mm
Package Dimension L2135W875H780mm
Net Weight 152KG
Gross Weight 220KG

How does it work?

1

Typeset in Computer

Organize your designed graphics with RIP software on the computer and place the UV DTF A film on the platform of the printer.
1

Typeset in Computer

Organize your designed graphics with RIP software on the computer and place the UV DTF A film on the platform of the printer.
2

Print Pattern On Film

Prefill the cartridge with CMYK ink, white ink, and varnish to print patterns on film
2

Print Pattern On Film

Prefill the cartridge with CMYK ink, white ink, and varnish to print patterns on film
3

Covering B Film

Use the laminating machine along with the UV DTF Printer to transfer the pattern.
3

Covering B Film

Use the laminating machine along with the UV DTF Printer to transfer the pattern.
4

Place film on Products

Press the film on the product surface and tear it off slowly, and your product is finished.
4

Place film on Products

Press the film on the product surface and tear it off slowly, and your product is finished.

Start Printing Effortlessly

Comprehensive service starting from pre-sale to after-sale to help your business on track.

Free Demo & Sample

To show the quality and capability of our printer in satisfying your needs, we will send you a free video demonstration showing its operation. And you can get free samples for consumables.
flipbox-image

Free Demo & Sample

To show the quality and capability of our printer in satisfying your needs, we will send you a free video demonstration showing its operation. And you can get free samples for consumables.

Fast Delivery

To meet everyone’s order quickly, we’ve established an overseas warehouse in California, USA. This doesn’t just save time and effort, but also reduces transportation fees. In-stock products can be delivered within 7 days.
flipbox-image

Fast Delivery

To meet everyone’s order quickly, we’ve established an overseas warehouse in California, USA. This doesn’t just save time and effort, but also reduces transportation fees. In-stock products can be delivered within 7 days.

Onboarding Easily

Adequate provision is made for installation and repairs. We offer both online and door-to-door services around the world and also provide manuals and video instructions as extra guides.
flipbox-image

Onboarding Easily

Adequate provision is made for installation and repairs. We offer both online and door-to-door services around the world and also provide manuals and video instructions as extra guides.

Life-time Warranty

You can enjoy a lifetime warranty on all products using our branded inks, which guarantees free spare parts & repairs, software updates, and technical assistance 24/7.
flipbox-image

Life-time Warranty

You can enjoy a lifetime warranty on all products using our branded inks, which guarantees free spare parts & repairs, software updates, and technical assistance 24/7.
