Product Highlights:
1. Epson i3200-A1 Printhead for High Precision
Equipped with 1 Epson i3200-A1 printhead, delivering high-resolution printing, smooth color transitions, and excellent image clarity for professional sublimation printing.
2. Stable Motion Control System
Powered by Hoson control board and Leadshine motors, ensuring precise media movement, consistent printing accuracy, and reliable long-term operation.
3. Durable All-Aluminum Lifting Ink Station
The upgraded all-aluminum lifting ink stack provides more stable lifting performance, improving durability and protecting the printhead during operation.
4. Intelligent Safety & Detection Functions
Includes printhead anti-collision system, paper shortage detection, and ink shortage alarm, helping reduce printing errors and improve production efficiency.
5. Constant Temperature Automatic Drying System
Integrated heating system ensures fast and even drying, improving transfer quality and enhancing overall printing productivity.
6. Designed for Polyester Fabric Applications
Optimized for sublimation transfer printing on polyester materials, delivering vibrant colors and durable printing results.
The Epson i3200-A1 printhead ensures high-resolution output and smooth color gradients for professional dye sublimation printer applications. It delivers stable performance, accurate ink droplet control, and vibrant color reproduction for polyester fabric printing.

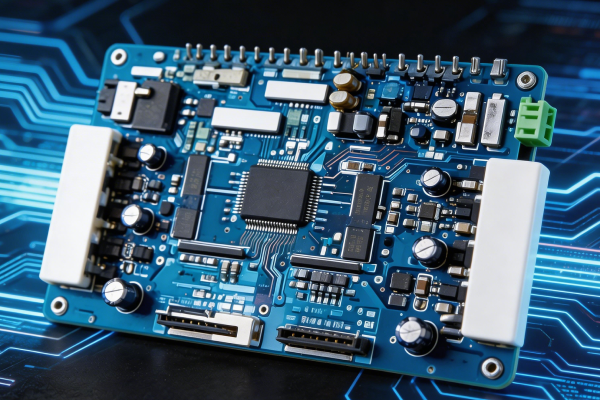

The Hoson control board provides precise signal processing and stable workflow management for the dye sublimation printer. It improves printing accuracy, ensures smooth operation, and enhances overall production efficiency.

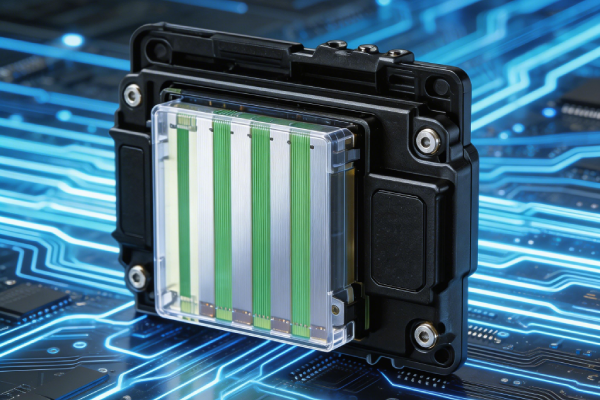

Close-up of the Epson i3200-A1 printhead, a core component of the dye sublimation printer. It delivers precise ink droplet control, high-resolution printing, and smooth color gradients, ensuring vibrant and consistent printing results on polyester fabrics and sublimation transfer applications.

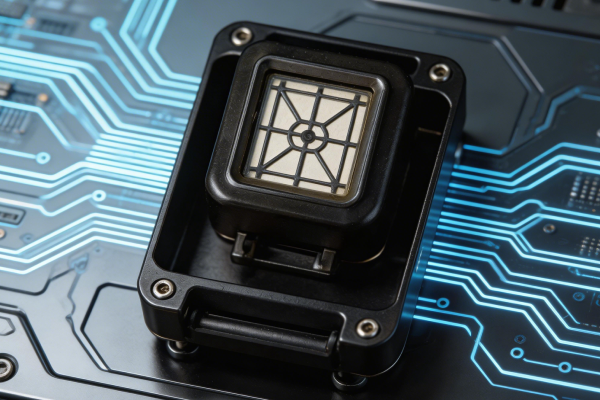

The all-aluminum lift ink tray offers stable lifting performance and improved durability for dye sublimation printer operation. Its robust structure helps protect the printhead and ensures consistent printing results during long production cycles.
| Model | I3200-A1 |
|---|---|
| Ink Type | AQ ink |
| Max. number of colour inks | 4 colours |
| Number of nozzle | 3200 |
| Nozzle pitch /nozzle row | 1/300 inches |
| Nozzle Rows | 8 rows |
| Nozzle Resolution | 300npi/1 column 600npi/2 columns |
| Effective Print Width | 33.8 mm (1.33 inches) |
| Dimensions(LxWxH) | 69.1 x 59.4 x 35.6 mm |
| Weight | 82g |
| Model | H1301X-1I32A1 |
|---|---|
| Print Heads | 1pc Epson i3200-A1 |
| Colors | YMKC |
| Printing Speed | 4PASS:20m²/h |
| Printing Width | 1300mm |
| RIP Software | Standard Maintop |
| Applicable Media | Heat transfer paper |
| Temperature / Humidity | 18-30 Celsius/35%-65%Rh |
| Ink | Dye Sublimation Ink |
| Voltage | 220V; 50HZ |
| Power | Machine Power: 330W; External Drying: 2500W |
| Machine Size | L2190*W860*H1550mm |
| Package Dimension | L2790*W890*H720mm |
| Net Weight | 140KG |
| Gross Weight | 205KG |
Create the artwork using professional design software.
Adjust layout and colors in RIP software.
Print the design onto sublimation transfer paper.
Use a heat press to transfer the image onto polyester fabric (190–210°C, 30–60s).
Bright, durable, and long-lasting results.
1. What materials can the XF-H1301X sublimation printer print on?
This printer is designed for polyester fabrics and polymer-coated materials, including ribbons, curtains, carpets, sportswear fabrics, and home textile products.
2. What printhead does the XF-H1301X use?
The XF-H1301X uses 1 Epson i3200-A1 printhead, known for high precision, stable performance, and excellent color output.
3. Is sublimation printing durable?
Yes, sublimation printing allows ink to penetrate into the material surface, creating long-lasting images that are resistant to fading, cracking, and peeling.
4. Does the printer include a drying system?
Yes, the XF-H1301X features an automatic constant temperature drying system to ensure fast ink drying and stable printing performance.
5. What industries is this sublimation printer suitable for?
It is suitable for textile printing businesses, home decoration manufacturers, advertising companies, and custom product producers.
6. Is the printer suitable for small business use?
Yes, the XF-H1301X is suitable for small and medium-sized businesses looking to produce customized textile products with stable and professional printing quality.
