I3200-A1 Printhead
The print head prints out cleaner and smoother color blocks, bringing high saturation and brilliant color performance, suitable for business that needs high standard resolution on the graphics.
Parameter
Ink Types:
water-based ink
Max color/head:
4 colors (600dpi)
Nozzle Numbers:
3200
Dimension:
69.1 x 59.5 x 36.7 mm
Main Features
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.
Support for Grey Scale
Epson's unique Variable Sized Droplet Technology(VSDT) delivers smooth gradation by free controlling to eject the droplet volume.
High Resolution
With up to 1200 nozzles per inch, the printhead has a higher nozzle resolution and high-definition images in a compact size.
8 Ink Supply Channel
By arranging the same colors in the vicinity, the accuracy of placement and the possibilities of color configuration is improved.
Efficient for Single Pass
Single-pass printing with Precisioncore tech for various applications is available for higher speed and accuracy.
PrecisionCore Technology with High durability
MEMS manufacturing and thin film piezo elements can realize high precision and high density. Contributes to compact, high speed, high quality, and high image quality. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.
PrecisionCore print head has proven high durability and extended service life by Epson’s industrial printers
Technical Parameter for Printer
| Ink Type | Apueous |
|---|---|
| Max. number of colour inks | 8 colours |
| Number of nozzle | 3200 |

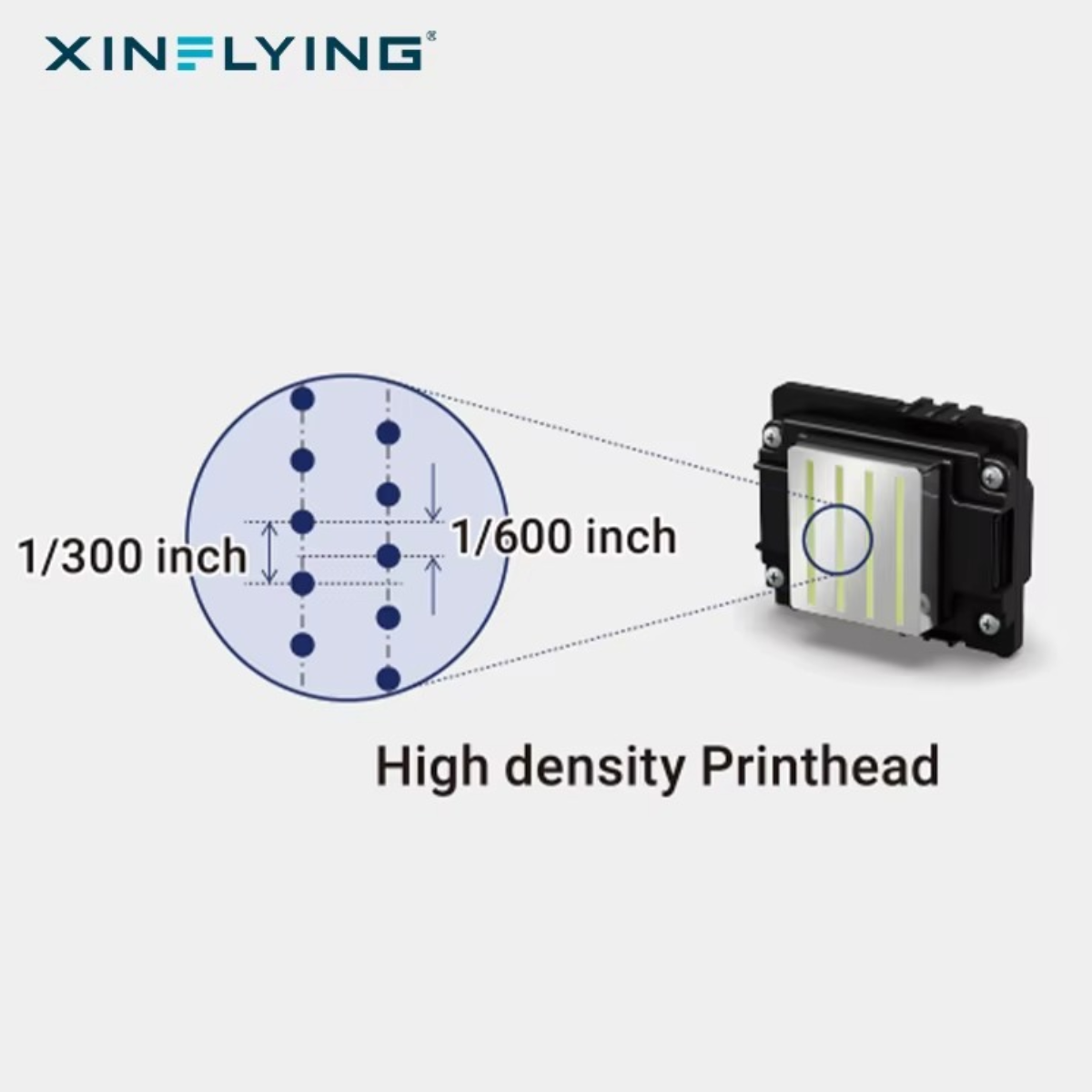

| Nozzle pitch /nozzle row | 1/300 inches |
| Nozzle Rows | 8 rows |
| Nozzle Resolution | 300npi/row 600npi/2rows 1200npi/4rows |
| Effective Print Width | 33.8 mm (1.33 inches) |

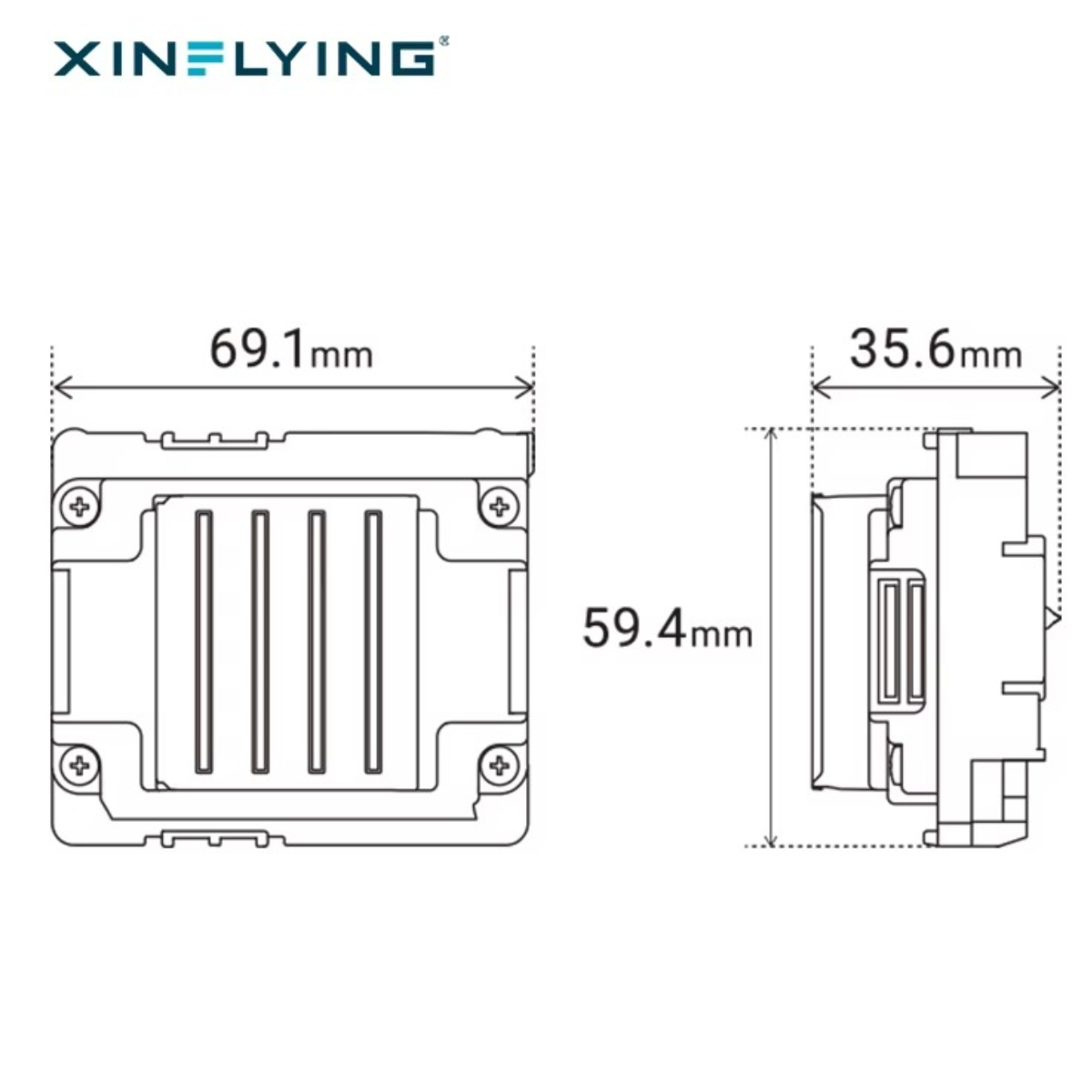

| Dimensions(LxWxH) | 69.1 x 59.5 x 36.7 mm |
| Weight | 78g |
